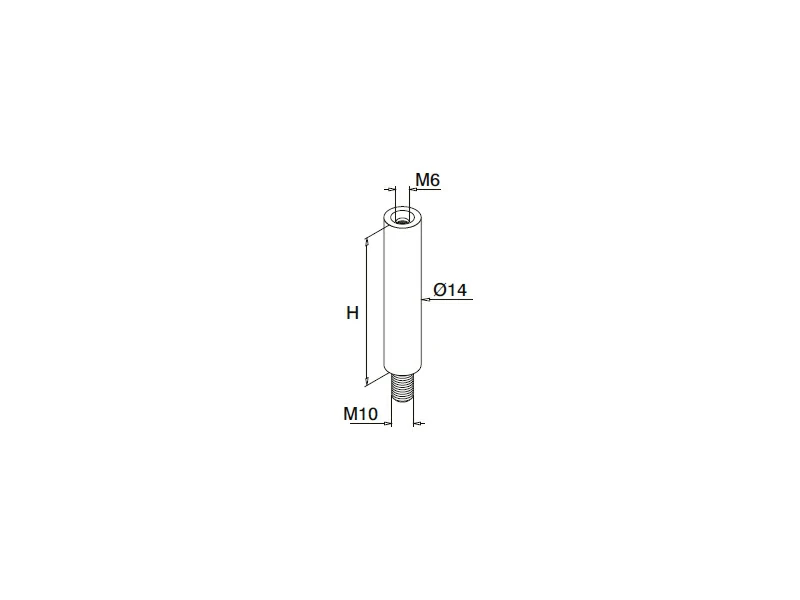

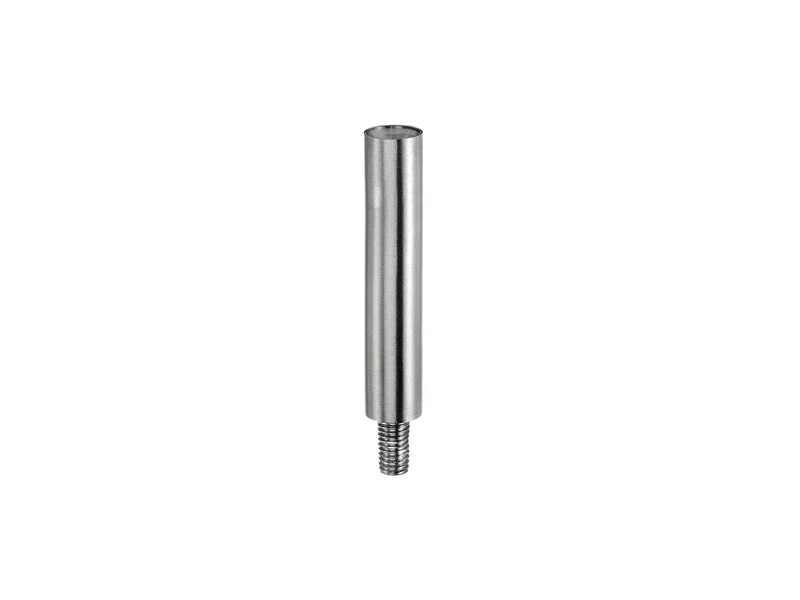

The Stainless Steel Handrail Bracket Stem M10 is a specific component used in handrail systems, serving as the connecting piece that attaches a handrail bracket to a mounting surface, such as a wall, post, or balustrade. Its design is a rod with a threaded end that screws into a mounting plate, and a flat end where the handrail bracket is secured. It effectively extends the railing support away from the wall or post. The product is available in a selection of materials and finishes to meet your specific project and environmental requirements. The handrail bracket stem is designed to secure and stabilize handrails in various settings, providing safety and support in staircases, walkways, and other elevated platforms.
|
Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F011.14.00 |
14mm |
70mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F011.14.01 |
14mm |
90mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing support samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
