Category |
Part NO. |
□ |
Ø |
H |
Material |
Surface |
Place of Production |
|
Square Tube Fittings |
S011.40.00 |
40x40mm |
Flat |
81mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Square Tube Fittings |
S011.40.42 |
40x40mm |
42.4mm |
81mm |
|||
|
Square Tube Fittings |
S011.40.48 |
40x40mm |
48.3mm |
81mm |

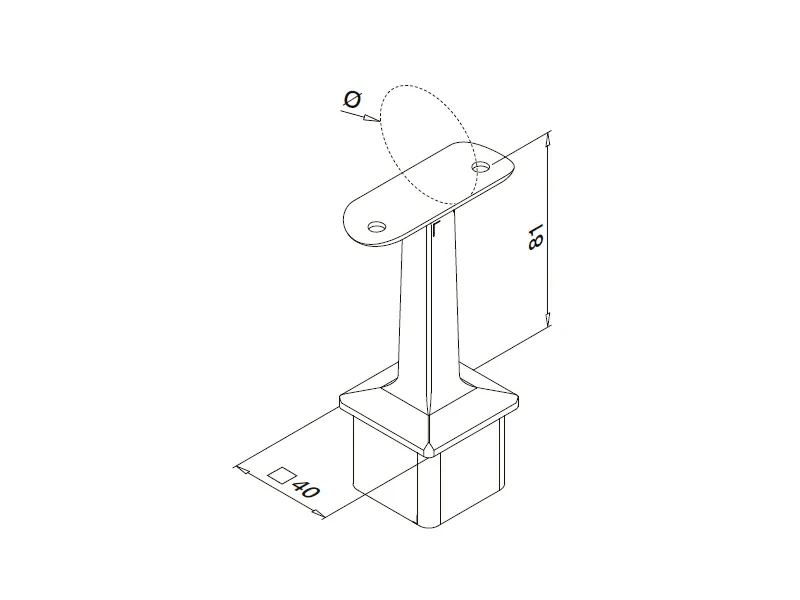

Square handrail support is a component used to provide structural support and stability to a square handrail in a railing system. It is typically designed to be attached to a wall or a post and is specifically shaped to accommodate the square profile of the handrail. The square handrail support helps to secure the handrail in place, preventing it from wobbling or coming loose. These supports come in various designs and materials to match different styles of square handrails and are commonly used in both interior and exterior settings where a square handrail is installed for safety and aesthetic purposes.
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
3. Installation Location: Wall
4. Certificate: ISO9001:2015
5. Certificates: Material Certificates, Dimension Inspection Certificate
6. Lead Time : 50days batch production after square handrail support samples approved
7. Warranty Service: 1 Year
8. After-sales Service: Online Technical Support, Return And Replacement
