Home Square Tube Fittings Square Tube Fittings

Square Tube Oblong Base Flange

25.4x25.4mm, 38.1x38.1mm, 50.8x50.8mm

Stainless Steel Oblong Square Base Flange

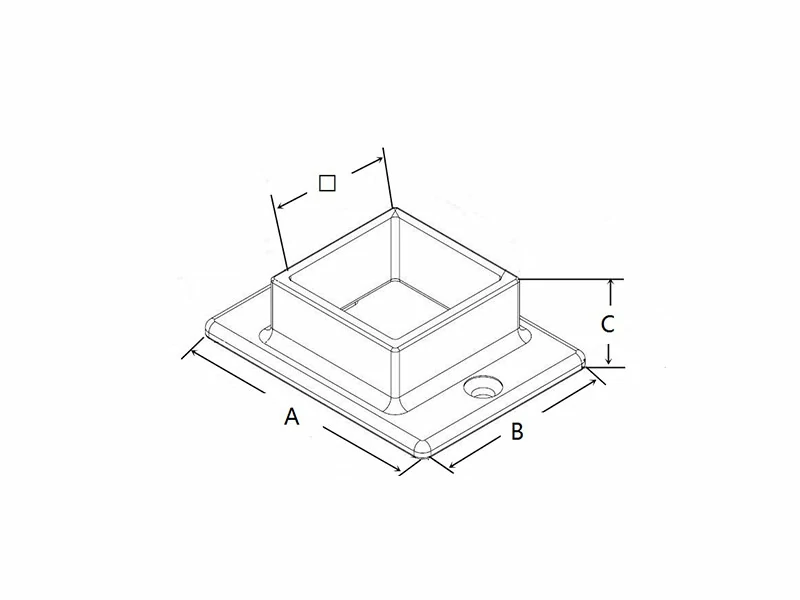

square base flange structure

Category

Part NO.
Fit for Tube

(mm)

A

(mm)

B

(mm)

C

(mm)

(mm)

Material

Surface

Place of Production

Square Line

ST1025
25.4 x 25.4
60 38 28 25.4

Stainless Steel 304 / 316

Satin or Mirror polished

Shandong, China

Square Line

ST1038
38.1 x 38.1
78 56 30 38.1

Square Line

ST1050
50.8 x 50.8
106 80 30 50.8

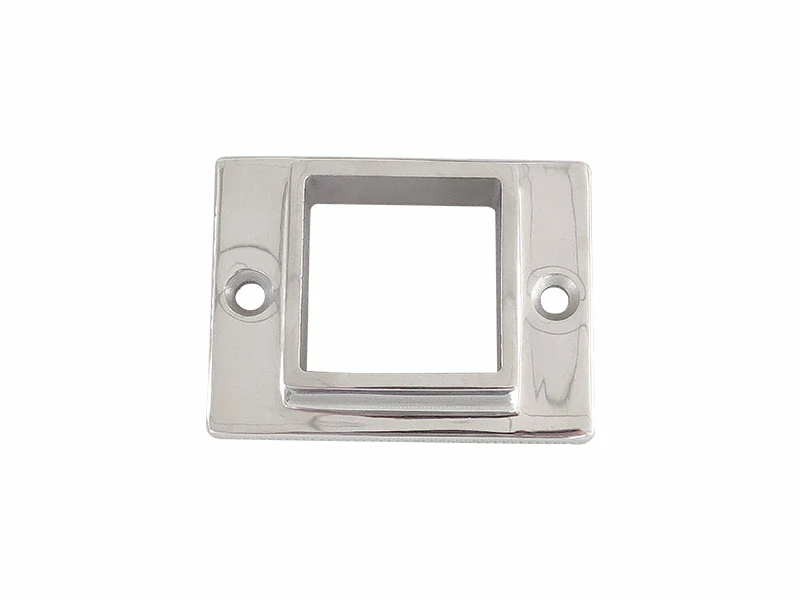

The stainless steel square base flange for handrails is designed to securely attach a square stainless steel tube to a surface, such as a floor, wall, or staircase. The "oblong square" shape design can provide a larger mounting surface, enhancing stability. This square base flange provides a flat surface with pre-drilled holes for secure mounting to a supporting structure. It is designed to be fixed to a flat surface with screws or bolts. The stainless steel construction ensures durability, resistance to rust and corrosion, making it ideal for both indoor and outdoor applications. These base flanges are available in 25.4x25.4mm (1 inch x 1 inch), 38.1x38.1mm (1.5 inch x 1.5 inch), and 50.8x50.8mm (2 inch x 2 inch) sizes, accommodating different handrail post dimensions.



Base Flange Basic Info:

1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after square tube flange samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
