Rectangular Tube Joiner Adjustable

25x50mm

Rectangular Tube Joiner Adjustable

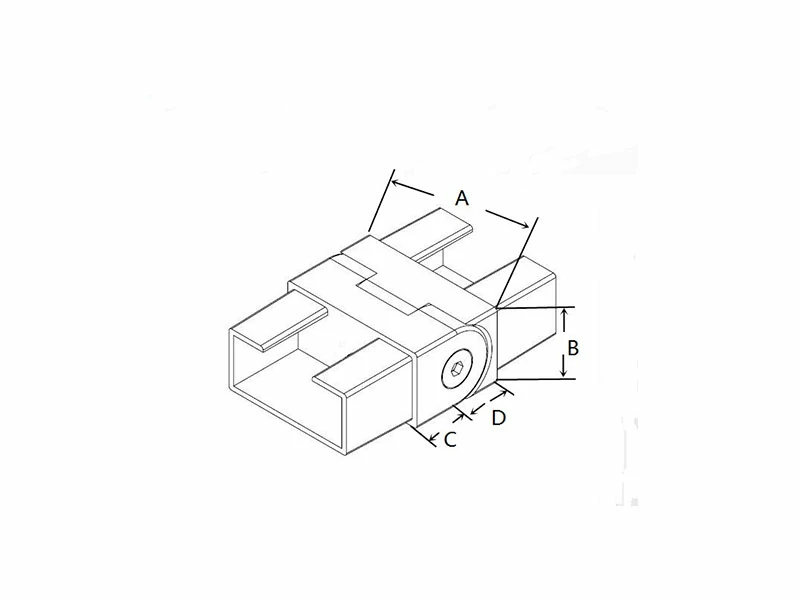

Rectangular Tube Joiner Adjustable Structure

Category

Part NO.
Fit for Tube

(mm)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

Material

Surface

Place of Production

Rectangular Fittings

RCT052550

25 x 50 x 1.5
50 25 15.5 15.5

Stainless Steel 304 / 316

Satin or Mirror polished

Shandong, China

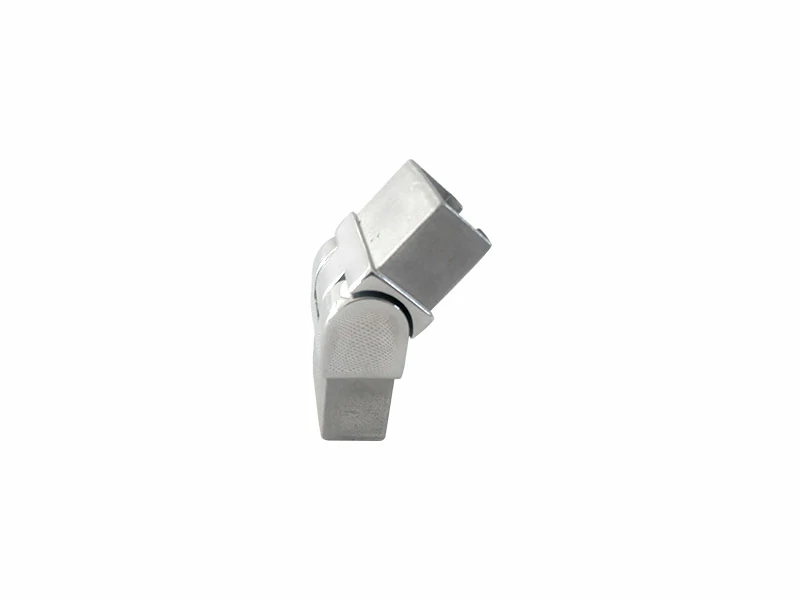

Rectangular tube joiner adjustable is a component used to connect two rectangular tubes together at an adjustable angle. It allows for the joining of rectangular tubes at various angles, providing flexibility for handrails. The adjustability feature enables the user to create joints at different angles to suit specific design requirements. These tube joiners are commonly used in applications where the angle between the tubes needs to be easily adjustable or where precise angles are necessary for the overall structure.



Tube Joiner Basic Info:

1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Use Place: Bridge Railings / Handrails, Stair Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails
4. Certificate: ISO9001:2015
5. Certificates: Material Certificates, Dimension Inspection Certificate
6. Lead Time : 60days for samples making +60-90days batch production after rectangular tube joiner adjustable samples approved
7. Warranty Service: 1 Year
8. After-sales Service: Online Technical Support, Return And Replacement
