Category |
Part NO. |
Fit for Tube
(mm) |

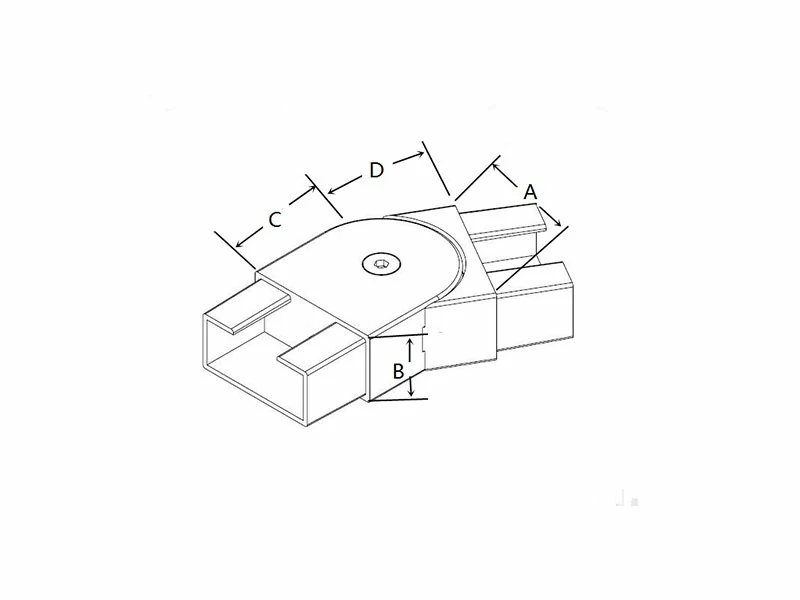

A (mm) |
B (mm) |
C (mm) |
D (mm) |
Material |
Surface |
Place of Production |
|
Rectangular Fittings |
RCT062550 |
25 x 50 x 1.5
|
50 | 25 | 30 | 30 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
Rectangular 25mm tube joiner adjustable is a specific type of component designed to connect two rectangular tubes with a 25mm width together at an adjustable angle. This type of joiner is tailored for use with rectangular tubes that have a 25mm dimension, allowing for the creation of adjustable joints at specific angles. These tube joiners provides flexibility in constructing handrails.
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Use Place: Bridge Railings / Handrails, Stair Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails
4. Certificate: ISO9001:2015
5. Certificates: Material Certificates, Dimension Inspection Certificate
6. Lead Time : 60days for samples making +60-90days batch production after rectangular 25mm tube joiner adjustable samples approved
7. Warranty Service: 1 Year
8. After-sales Service: Online Technical Support, Return And Replacement
Inquiry Rectangular Tube Fitting in Other Sizes, please contact us.
